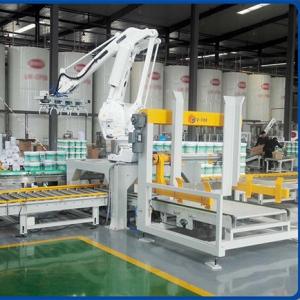

Rotary palletizer
Rotary palletizer Features:
A. Stable speed and tidy and beautiful palletized shape;
B. HMI touch screen used to realize functions including dynamic display, monitoring, counting, fault output, which is easy and simple for operation;
C. System drives are all imported durable and reliable motors;
D. Control system adopts PLC, frequency convertor and a variety of sensors to work together to complete automatic/manual operation.
Description of Rotary palletizer :
- End-of-line palletizer for beer, drinks, pharmaceutics and other industry;
- Rotary angle exceeding 180°,can palletize several pallets at one time, flexible rotation, compact footprint, performance equal to but more economic than robotic palletizer;
Features:
- Introduced with overseas advanced technology of single column rotary robotic palletizer, attractive appearance without compromising performance;
- Easy and convenient adjustment of palletizing pattern on HMI or Flex-pendant.
-
Touch-screen operation is used to realize human-machine interaction, which can display production speed, cause and location of faults, and has a high degree of automation. The use of PLC programmable sorting cartons of stacking layers, pallet supply and discharge can be programmed into the control.
Work Flow
Put empty pallet to waiting station → convey the empty pallet to palletizing station → lift the empty pallet to palletizing position → palletize continuously → convey the loaded pallet to finished product station
Specifications:
| Model | WKD-XMD-10 |
| Power supply | 220V/380V,50/60Hz,9KW |
| Air consumption | 550nl/min |
| Machine dimension | R2000*H4000mm |
| Pallet size | ≤1200*1200mm |
| Arm loading capacity | ≤100kg |
| Motion cycle | 5~8s/cycle |
| Palletizing H | ≤2000mm |
| FAQ: |
| Delivery time | 35-45working days |
| Installation time | 7-15working days |
| Packing method | Wooden case |
| Payment method | TT30%+TT70% |
| Warranty | 12 months |
| After-sale service | Available |
| Training | Available |
| Free layout design | Available |
Production Line
OEM/ODM
Backed by ten professional electrical engineers and ten professional mechanical engineers, besides the owner of V-PAK, who was born a technician, we are confident to undertake any packaging-related equipment&line and other tailor made requirements.
Why us:
- Original manufacturer with 10-year professional experience.
- Customized equipment according to customer' requirements, high quality with competitive price.
- Abundant export experience: our products have been exported to Indonesia, Malaysia, Vietnam, Singapore, etc .
- Superior after-sale service: Engineers available to service machinery overseas.
After sale service:
1. Installation
After equipment reached the workshop of customer, We will arrange seasoned technician for equipment installation, debug and test production and at the same time make the equipment reach the rated producing capacity of the line. Time for installation and debug is around 15-25 days.
2. Training
Our company offers technology training to customer. The content of training covers structure and maintenance of equipment, control and operation of equipment. Training will be arranged in the workshop of customer. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could last for one year without adding any aseptic.
